Variability

• It is common in domain modeling and domain engineering to focus on narrow domains. This helps to avoid scope creep and exploit commonality. Managing **variability* is the price we have to pay for being able to support more than one product, but we want to keep the variability possible low (as a cost).

• In this tutorial, we will concentrate our model on small regional stations. We scope our model to:

  • allow single or dual main tracks,
  • one or two input tracks,
  • and one or two output tracks.

• Finally, we observe that some stations (and only some) also have a side track, also known as a parking track, were trains can be stopped for longer periods.

Let’s reflect these changes in our feature model:

A few observations about this model

• Recall that the symbol ? is a handy notation for 0..1 cardinality and we will use it from now onwards. This cardinality represents optional features, so this is one way we introduce variability in the model.

• Cardinality constraints that are written to the left of the clafer name restrict the cardinality of the set of all children. We call such a cardinality constraint a group cardinality (as opposed to clafer cardinality)

• xor is a shortcut for 1..1 again, but traditionally used for group cardinality describing a choice of an alternative. It means that only one of the children can be selected at a time. Think of this group as ‘Radio Buttons’.

• other useful group cardinalities include mux (which stands for 0..1), and or (which stands for 1..*). The former means that at most one sub-clafer can be instantiated, but perhaps none. This is a classic mutual exclusion requirement (an exclusion group). The latter, defining so called or-groups, means that at least one sub-clafer must be instantiated. This captures a common pattern of a required subsystem, that has a number of variations, which can coexist; for instance, different compression algorithms or different authentication protocols in software applications.

More information: Tutorial: Group Cardinalities

• If the group cardinality constraint is anything else than 0..* (which is the default one, corresponding to no restriction), then the default cardinality for each of the children is ? (otherwise 1 as explained in the previous page). This is natural, as mandatory features do not make sense in groups with restricted cardinality – they would immediately produce an inconsistency in the model.

• Clafers can be arbitrarily nested. Thus our mandatory clafers (first level of nesting) still are mandatory, but their subclafers are optional.

More information: Tutorial: Cardinality

How many model instances are possible now?

Let’s use another tool, ClaferConfigurator, to generate all instances.

Task 2:

• Press the button to open the model from this page in the configurator and press the button Run in the Instance Generator window – it will try to generate 10 instances. Make sure that you are using an Alloy based generator, not the choco and not the Z3 based.

• The green tick indicates the presence of a clafer in a given instance, the red crossed circle its absence. All mandatory clafers are also present in every instance as indicated by gray checked checkboxes in the left column.

• Note that, in general, making a clafer mandatory does not guarantee that it will be present in all instances, since it can be a child of an optional clafer.

• Close the configurator

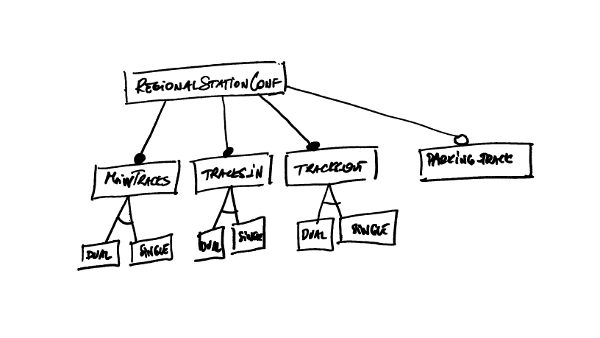

For completeness we include the same model in the popular FODA [FODA] notation:

Clafer also has a simple visualization tool translating models to the VSpec notation of Common Variability Language (CVL). This is very similar to FODA feature models:

• Move to the page Do not Repeat Yourself.
